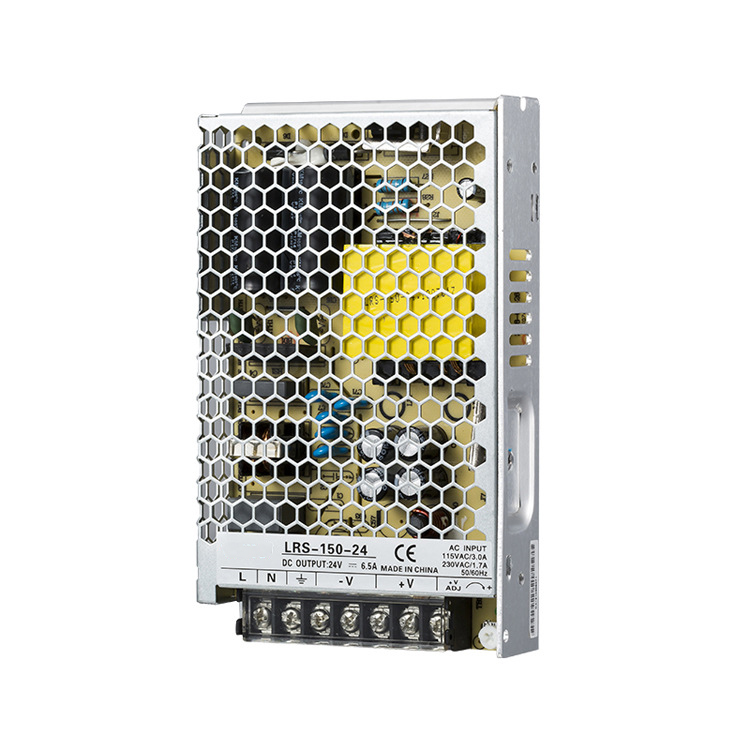

150W Single Output Switching Power Supply

Model No.

Output Voltage

Volt Tolerance

Power

Efficiency at
230VAC (%) Typ.

LRS-150-12

12.0V

10~12500mA

10.2 ~ 13.8V

150.0W max

87

LRS-150-15

15.0V

10~10000mA

13.5 ~ 18.0V

150.0W max

89

LRS-150-24

24.0V

10~6500mA

21.6 ~ 28.8V

156.0W max

89

LRS-150-36

36.0V

10~4300mA

32.4 ~ 39.6V

154.8W max

89

LRS-150-48

48.0V

10~3300mA

43.2 ~ 52.8V

158.4W max

90

Input:

Input Voltage Range

Frequency

47~63Hz

Input Current:

2800mA

Leakage Current

≤0.75mA

Output:

Load Regulation

±1%      0-100%load

Ripple&Noise*

150mV/12V   150mV/15V    200mV/24V  200mV/36V  200mV/48V

Hold-up Time

50ms/230VAC 30ms/115VAC at full load

Turn On Delay Time

3S Max @ 100Vac, full load

Rise Time

≤200ms Max.@ 220Vac, full load

Protection

Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

Safety Approvals:

UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB

Efficiency

DoE Level V/Ⅵ

Safety Standard

EN62368 EN60335 EN61558 EN60950

MTBF

300,000 Calculated Hours at 25ºC , by Telcordia SR-332

Environmental:

Operating Temp:

-30℃to +70℃

Operating  Humidity:

20 to +90℃RH

Storage Temp:

-40℃to +85℃

Storage Humidity:

10 to +95℃RH

Package:

CTN: cm/40pcs per ctn

N.W:

G.W:

Application Scope:

Industrial Automation Equipment

Industrial Control Equipment

Mechanical And Electrical Equipment

Household Equipment

Dimension:

L*W*H: 159*97*30mm

Weight:0.480kg

Outline Drawing：
